VLF Antenna

A hand-wound antenna that makes very low frequencies like lightning audible, built for an installation by Felix Lenz.

For
Felix Lenz
Date
Reading time
1 min
AI-generated image of orange lightning strikes
VLF frequencies *serviervorschlag

What is VLF

VLF is a radio sepctrum ranging from 3kHz to 30kHz. The electromagnetic signals are produced naturally by the earths ionosphere and include lightning strikes, northern lights and some technologies that emit waves in this spectrum. A famous example would be the low 50hz hum emitted from 50hz power grids.

The Antenna

These Frequenices can be picked up by an inductor which is basically a large loop of conducting wire that picks up magnetic fluctuations. If we solder the two ends to an audio-jack. We can amplify the signal and listen to it.

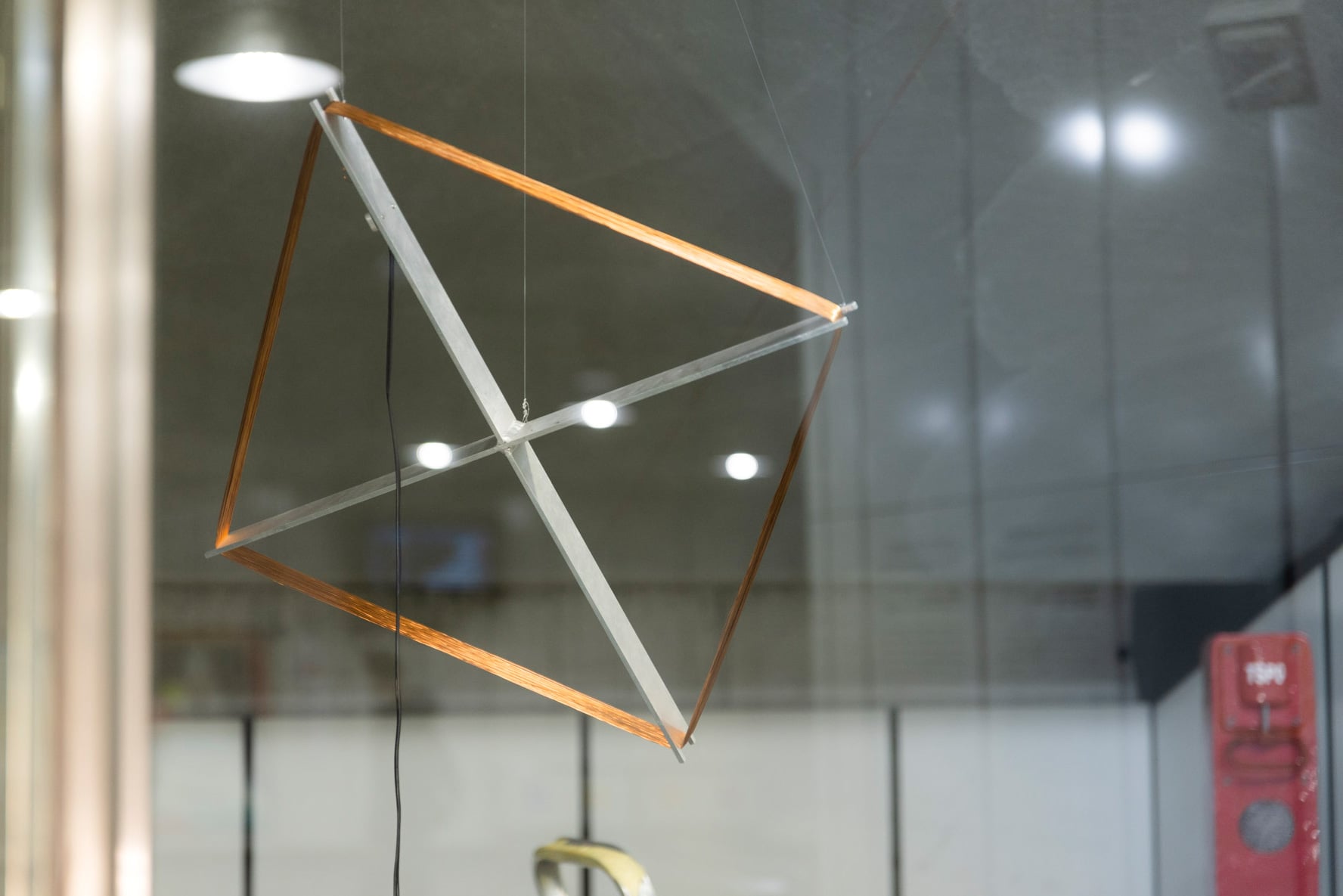

picture of a vlf-antenna hanging in the air©Felix Lenz 2023
vlf-antenna

Frame

The flightweight frame consists of two welded aluminum rods with a recess milled in the end. The copper wire was wound around it and passed through a strain relief.

cad drawing of a aluminium cross forming a vlf antenna
simple cad-drawing

Credits

Project designed for- and together with Felix Lenz.. Milling by Angewandte Metallwerkstatt.
